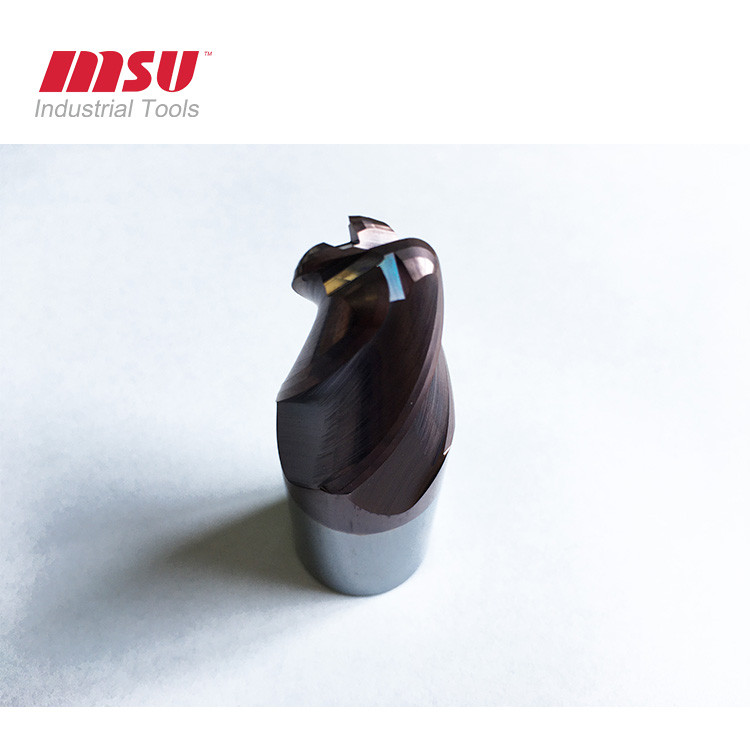

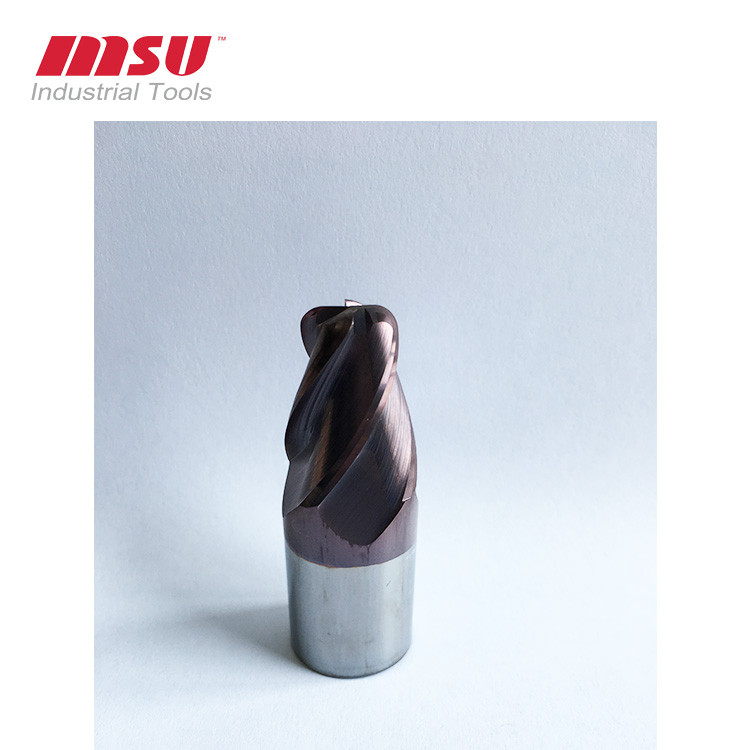

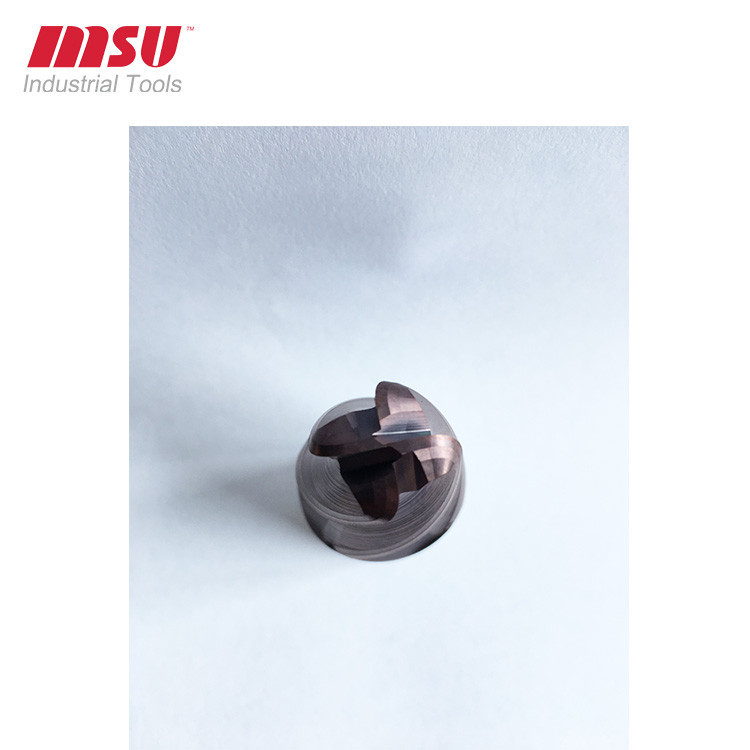

Customized Solid Carbide Tapered Corner Radius End Mill 4 Flute R4

Categories	Customized End Mills
Brand	MSUTOOLS
Model	Customized
Material	Solid Carbide
Internal Cooling	Without
No of Cutting Flute	4 Flutes
Type	Taper Corner Radius
Coating	TiAlCrN
Cutting Direction	Right - Hand
Precision	±0.01
Workpiece	Carbon Steel/ Alloy Steel/Grey Cast Iron
Application	Milling
Cutting Diameter	D15.18 mm or customized size
Full Length	70mm or customized size
FOB port	Any ports of China
Terms of Payment	MoneyGram, T/T, Paypal
Update Time	May 5,2024

Detail Information

Customized 4 Flute Tapered Corner Radius End Mill R4 produced as per drawing.

1. Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 60 HRC .
Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron.
2. Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
3. 4 flute variable pitch design for reduced harmonics and increased feed rates
4. Center cutting
5. h6 shank tolerance for high precision tool holders
6. Nano Black coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
7. Solid carbide
